Roof Flashing: 9 Key Types and Why Leaks Happen

Roof flashing is one of the most important components of a roofing system, yet many homeowners do not realize how critical it is until leaks appear. Installed around roof penetrations, edges, valleys, and transitions, flashing helps direct water away from vulnerable areas and protects the roof from moisture intrusion. Without properly installed flashing, water can seep beneath shingles, damage the roof deck, and eventually impact the interior of your home.

Understanding the purpose of roof flashing, the different types available, and the warning signs of failure can help homeowners prevent costly repairs and extend the lifespan of their roofing system.

• Main purpose: Direct water away from vulnerable roof areas
• Common locations: Chimneys, valleys, skylights, vents, and roof edges
• Helps prevent: Leaks, water damage, and structural deterioration
• Important for: Long-term roof protection and drainage performance

What Is Roof Flashing?

Roof flashing is a thin material, typically metal, installed in areas where water is most likely to collect or penetrate the roofing system. These areas include roof joints, valleys, chimneys, skylights, vent pipes, and transitions where the roof meets walls or other surfaces.

Flashing acts as a waterproof barrier that redirects water away from seams and openings before it can reach the underlayment or roof deck. Even high-quality shingles alone are not enough to fully protect these vulnerable sections of the roof without flashing.

Most flashing is made from durable materials designed to withstand weather exposure, temperature changes, and years of water runoff.

Why Roof Flashing Is Important

Roof flashing plays a major role in preventing water infiltration and helping roofing systems perform properly during severe weather.

• Protects vulnerable areas: Seals roof penetrations and transitions
• Prevents roof leaks: Redirects water away from exposed seams
• Helps protect the roof deck: Reduces long-term moisture exposure
• Supports drainage performance: Guides water toward gutters and drainage systems
• Extends roof lifespan: Helps minimize structural damage over time

Without flashing, areas around chimneys, skylights, vents, and valleys become far more susceptible to leaks and water damage.

Common Roof Flashing Materials

Different flashing materials offer different levels of durability, flexibility, and corrosion resistance. The right material often depends on the roof type, climate, and budget.

Material	Main Benefit	Common Drawback
Aluminum	Lightweight and corrosion-resistant	Can crack in colder temperatures
Copper	Extremely durable and long-lasting	Higher upfront cost
Galvanized steel	Strong and affordable	May rust over time
Lead	Flexible and weather-resistant	Expensive and less commonly used
PVC or plastic	Cost-effective and easy to install	Less durable than metal flashing

Choosing quality flashing materials helps improve durability and reduce the risk of premature failure.

9 Types of Roof Flashing

Different areas of the roof require different flashing designs to properly manage water runoff and protect against leaks.

1. Step Flashing

Step flashing is installed where the roof meets a vertical wall, such as sidewalls or dormers. Its layered design helps direct water safely down the roof while protecting vulnerable intersections from moisture intrusion.

• Installed in layers: Overlaps with shingles to direct water downward
• Protects wall intersections: Prevents water intrusion at roof-to-wall transitions
• Often paired with counter flashing: Adds extra protection

2. Continuous Flashing

Continuous flashing, sometimes called apron flashing, is a long piece of metal used along horizontal roof joints. It creates a clean appearance while helping prevent water from entering exposed seams.

• Provides seamless protection: Covers long roof transitions
• Helps improve appearance: Creates a cleaner finished look
• Requires expansion gaps: Prevents warping from temperature changes

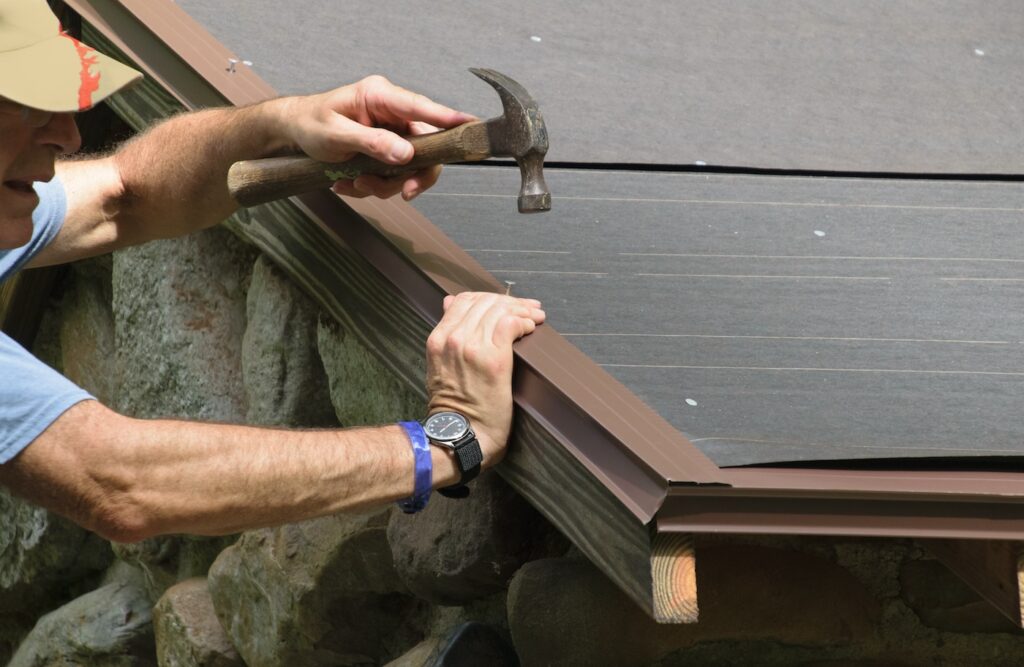

3. Drip Edge Flashing

Drip edge flashing is installed along roof edges to help direct water into the gutter system. It also protects roof decking and fascia boards from moisture damage over time.

• Protects fascia boards: Prevents moisture damage along roof edges
• Supports gutter drainage: Helps water flow properly into gutters
• Reduces rot risk: Helps protect wood components from water exposure

4. Valley Flashing

Valley flashing protects areas where two roof slopes meet and large amounts of water naturally collect. These sections are especially vulnerable to leaks during heavy rain or snow.

• Directs heavy water runoff: Helps prevent pooling in valleys
• Protects high-risk areas: Valleys are common leak locations
• Supports proper drainage: Moves water safely toward gutters

5. Vent Pipe Flashing

Vent pipe flashing seals around plumbing vents and roof penetrations where pipes pass through the roof surface. Without proper sealing, these openings can become major leak points.

• Creates watertight seal: Prevents leaks around vent pipes
• Uses rubber boot or metal collar: Fits tightly around penetrations
• Requires periodic inspection: Rubber components may wear over time

6. Counter Flashing

Counter flashing is installed over step flashing or base flashing to provide an additional layer of moisture protection. It is commonly used around chimneys and masonry walls.

• Common around chimneys: Protects masonry intersections
• Works with base flashing: Forms a two-part waterproof system
• Helps block moisture intrusion: Prevents water from entering behind flashing

7. Base Flashing

Base flashing is typically installed around chimneys and roof projections where movement from expansion and contraction may occur. It helps maintain a watertight seal in areas exposed to constant temperature changes.

• Handles movement: Designed for expansion and contraction
• Protects vulnerable seams: Prevents leaks near roof penetrations
• Works with counter flashing: Improves long-term durability

8. Skylight Flashing

Skylight flashing is specifically designed to seal the gap between the skylight and roofing material. According to the U.S. Department of Energy’s Building Science Education resource, skylights represent a weak spot in the roof’s water management protection system where water could leak into the attic, potentially causing significant damage — making properly integrated skylight flashing one of the most critical details in any roofing installation.

• Protects skylight edges: Helps prevent water intrusion
• Uses multiple flashing layers: Improves waterproofing performance
• Important for leak prevention: Skylights are common weak points

9. Kick-Out Flashing

Kick-out flashing is installed where the roof meets a vertical wall near the gutter edge. It helps redirect water away from siding and into the gutter system.

• Prevents siding damage: Stops water from running behind walls
• Improves drainage flow: Redirects runoff toward gutters
• Helps protect foundation areas: Reduces water exposure near the house

Each type of flashing plays a specific role in protecting the roofing system and helping water move safely away from vulnerable areas.

How Roof Flashing Prevents Leaks

Roof flashing works by sealing and reinforcing areas where shingles alone may not fully protect against moisture intrusion. Water naturally follows seams, joints, and transitions, making these sections especially vulnerable during heavy rain or snow.

• Redirects water runoff: Guides moisture away from openings and valleys
• Protects penetrations: Seals around chimneys, skylights, and vents
• Prevents pooling water: Reduces water accumulation in roof valleys
• Supports underlayment protection: Helps prevent moisture from reaching the roof deck

Properly installed flashing acts as a secondary defense system beneath and around roofing materials.

What Causes Roof Flashing to Fail?

Several issues can contribute to flashing damage or premature failure over time.

Poor Installation

Proper installation of roof flashing is crucial for creating a waterproof seal, and roofing cement is commonly used to seal seams and nail heads, providing a durable barrier.

Weather Exposure

Rain, snow, UV rays, and freeze-thaw cycles can gradually weaken flashing materials. Over time, metal may corrode, sealants can crack, and flashing may loosen from repeated expansion and contraction.

Aging Roofing Systems

Older roofs often experience flashing deterioration as sealants dry out and materials lose flexibility. Flashing may also shift as roofing materials age and settle over time.

Storm Damage

High winds and falling debris can loosen or damage flashing around roof penetrations and edges. Severe weather may also bend or detach flashing sections, increasing the risk of leaks.

Addressing flashing issues early helps prevent water damage from spreading deeper into the roofing system.

Signs Roof Flashing May Need Repair or Replacement

Flashing can wear out, loosen, or deteriorate over time due to weather exposure and aging materials. Recognizing the warning signs early can help prevent more serious roof damage.

• Visible rust or corrosion: Weakens flashing performance
• Cracks or gaps: Allows water to enter vulnerable areas
• Loose flashing sections: Often caused by wind or poor installation
• Water stains on ceilings or walls: Indicates possible leak issues
• Missing flashing pieces: Leaves roof penetrations exposed
• Leaks near chimneys or skylights: Common flashing failure areas

Routine roof inspections can help identify flashing problems before they lead to major repairs.

Frequently Asked Questions About Roof Flashing

Homeowners often have questions about how flashing works, when it should be replaced, and why it is so important for preventing leaks.

How long does roof flashing last?

Roof flashing can last 20 years or more depending on the material, weather exposure, and installation quality. Copper and galvanized steel flashing often have longer lifespans than lower-cost materials.

Can roof flashing be repaired instead of replaced?

In some cases, small flashing issues can be repaired if the surrounding material is still in good condition. Severe rust, gaps, or widespread damage may require full replacement.

Is roof flashing included in a roof replacement?

Yes. Most professional roof replacement projects include replacing old flashing to ensure the new roofing system is fully protected from moisture intrusion.

What areas of the roof need flashing?

Flashing is commonly installed around chimneys, skylights, vents, valleys, roof edges, and anywhere the roof meets a wall or transition point.

Can damaged flashing cause leaks inside the home?

Yes. Damaged or missing flashing can allow water to reach the roof deck, attic, walls, and ceilings, leading to leaks and interior water damage.

What Materials Are Commonly Used for Roof Flashing?

Common materials used for roof flashing include aluminum, copper, galvanized steel, and various gauges of steel such as 24, 26, and 28 gauge, each offering unique benefits in terms of durability and performance.
